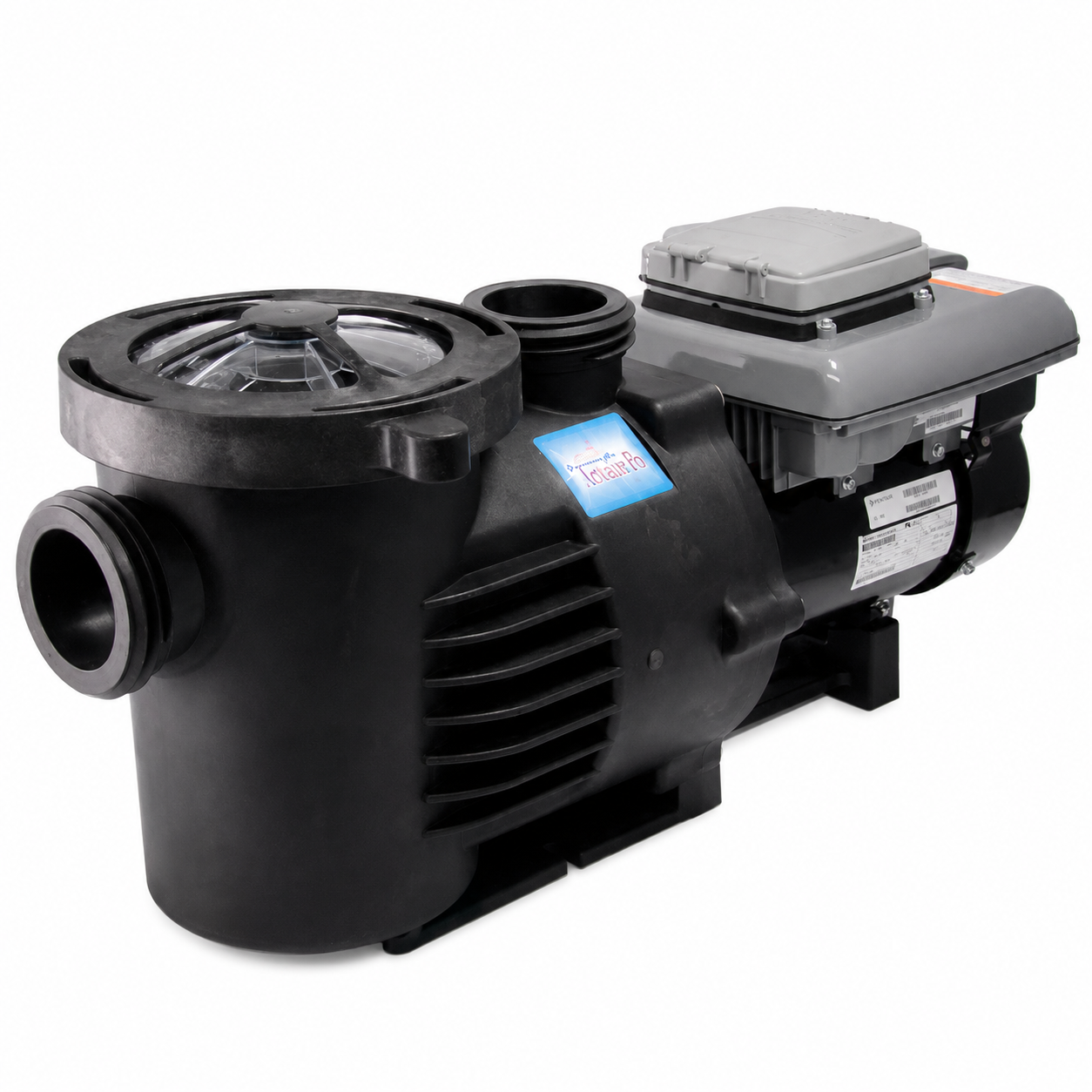

Artesian Pro Dial-A-Flow 1.6HP | Performance Pro Water Pump | High Flow Aquaculture Water Pump
The Artesian Pro Dial-A-Flow 1.6HP Performance Pump is a professional-grade external water pumping solution engineered for high-efficiency water movement, aquaculture systems, koi ponds, aquaponics, hydroponics, and large-scale filtration setups. Designed for continuous duty operation, this pump delivers exceptional flow rates while maintaining low energy consumption and precise variable speed control.
If you are searching for:
- High flow koi pond pump Australia
- Aquaculture water pump 1.6HP external pump
- Variable speed pond pump Dial-A-Flow
- Energy efficient water circulation pump
- Commercial fish farm water pump system
- High head pressure pond pump
Then the Artesian Pro Dial-A-Flow 1.6HP is built for your application.
Engineered for Professional Water Systems
The Artesian Pro Dial-A-Flow series is built for demanding environments where consistent water movement is critical. Unlike standard submersible pumps, this external centrifugal pump sits outside the water, improving safety, serviceability, and long-term reliability.
Key advantages include:
- Variable speed control for precise flow adjustment
- High head pressure capability for long pipe runs and filtration systems
- Self-priming design for easy installation above water level
- Energy-efficient motor technology for reduced running costs
- Heavy-duty corrosion-resistant construction
This makes it ideal for aquaculture farms, commercial ponds, hydroponic irrigation systems, and filtration circuits requiring controlled water turnover.
Technical Specifications
| Specification | Details |
| Model | B22-3800-CS-T8H5A-AS |
| Horsepower | 1.6 HP (approx. 1.65HP class) |
| Pump Type | External centrifugal, self-priming |
| Flow Rate (Max) | Up to 12,000–12,400 GPH (approx.) |
| Head Pressure | Up to 41–67 ft (system dependent) |
| Voltage | 230V Single Phase |
| Speed Control | Variable (Dial-A-Flow system) |
| Construction | Corrosion-resistant polypropylene housing |
| Motor Type | TEFC (Totally Enclosed Fan Cooled) |
| Application | Freshwater / Saltwater compatible |
| Ports | 3” inlet & outlet unions |
| Duty Rating | Continuous operation |
Performance Flow Chart (Real-World Use)
Below is a simplified performance curve for understanding how flow changes under system resistance:
Flow vs Head Pressure
| Head Height (ft) | Estimated Flow (GPH) | Use Case |
| 0–5 ft | 12,000–12,400 GPH | Open water transfer |
| 10 ft | 10,500–11,000 GPH | Large ponds / tanks |
| 20 ft | 8,500–9,500 GPH | Filtration systems |
| 30 ft | 6,500–7,500 GPH | Long pipe runs |
| 40 ft | 4,500–5,500 GPH | High resistance systems |
Flow Efficiency Curve (Visual Guide)
Flow (GPH)
12500 |█████████████████████
11000 |██████████████████
9500 |████████████████
8000 |█████████████
6000 |██████████
4000 |██████
————————-
0 10 20 30 40 ft
Head Pressure
Key insight: As head pressure increases, flow naturally reduces — but the Dial-A-Flow system allows optimisation across the curve.
Energy Efficiency Advantage
One of the biggest advantages of the Artesian Pro series is its ability to reduce running costs through variable speed control.
Estimated Power Usage vs Output
| Speed Setting | Power Use | Flow Output |
| Low (Eco mode) | 500–800W | 4,000–6,000 GPH |
| Medium | 900–1200W | 7,000–10,000 GPH |
| High | 1400–1600W | 11,000–12,400 GPH |
💡 Unlike fixed-speed pumps, you only use the energy you need — ideal for 24/7 aquaculture systems.
Ideal Applications
The Artesian Pro Dial-A-Flow 1.6HP pump is widely used in:
Aquaculture & Fish Farming
- Tank circulation systems
- Biofiltration loops
- Oxygenation support systems
- Raceway and hatchery water movement
Hydroponics & Aquaponics
- Nutrient film technique (NFT) circulation
- Sump tank pumping
- Recirculating grow beds
Commercial Water Systems
- Irrigation distribution
- Aquatic holding systems
- Large-scale filtration loops
Installation & Setup Guide
To achieve optimal performance:
Recommended Installation Position
- Install below or near water source level
- Keep suction line short and direct
- Use 3” plumbing for maximum efficiency
Plumbing Tips
- Avoid excessive elbows (reduces flow)
- Use smooth bore pipe where possible
- Install union fittings for easy maintenance
- Ensure proper priming before startup
Electrical Requirements
- 230V single phase supply required
- Must be installed by qualified electrician
- Weather-protected installation recommended
Build Quality & Durability
This pump is engineered for long-term professional use:
- Corrosion-resistant polymer housing
- Stainless steel internal shaft components
- Oil-free motor design (safe for aquatic environments)
- Heavy-duty TEFC motor for continuous duty operation
- Large integrated strainer basket for debris protection
The Artesian Pro Dial-A-Flow 1.6HP Performance Pro Pump is a premium-grade solution for professionals who need reliable, efficient, and adjustable water movement.
Whether you’re running a commercial aquaculture system, koi pond filtration loop, or hydroponic farm, this pump delivers the perfect balance of power, efficiency, and control.
- Built for performance
- Designed for efficiency
- Trusted in professional water systems worldwide
