Description
The Flocell XFM Fines Filter 900 is a high-performance pressurised filtration unit designed specifically for fine particle removal in demanding water treatment, aquaculture and industrial applications. Built around Flocell’s patented open-cell media and Air Clean cleaning technology, this model delivers high clarity, low operational cost and minimal intervention.
Key Benefits
- Fine particle capture – Engineered to retain particles down to less than ~5 µm using the open-cell XFM Fines media.

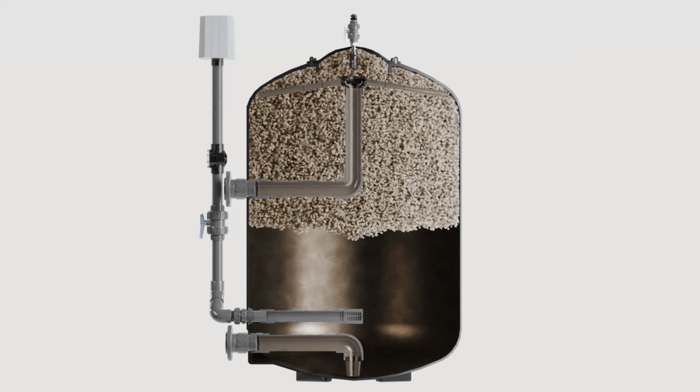

- Low water & energy usage – The Air Clean® cleaning cycle uses air agitation instead of a full backwash, vastly reducing both water usage and energy consumption.
- High retention capacity & minimal maintenance – Thanks to the unique media design, the filter can hold significant solids before cleaning is required, meaning longer uninterrupted operation.
- Flexible installation & low head-loss – The open-cell media ensures consistent flow performance with very low hydraulic loss, allowing gravity-feed or low-head pump applications.
- Robust build for real-world conditions – Manufactured in the UK to Flocell’s strict standards, the unit is designed for industrial longevity and reliability.

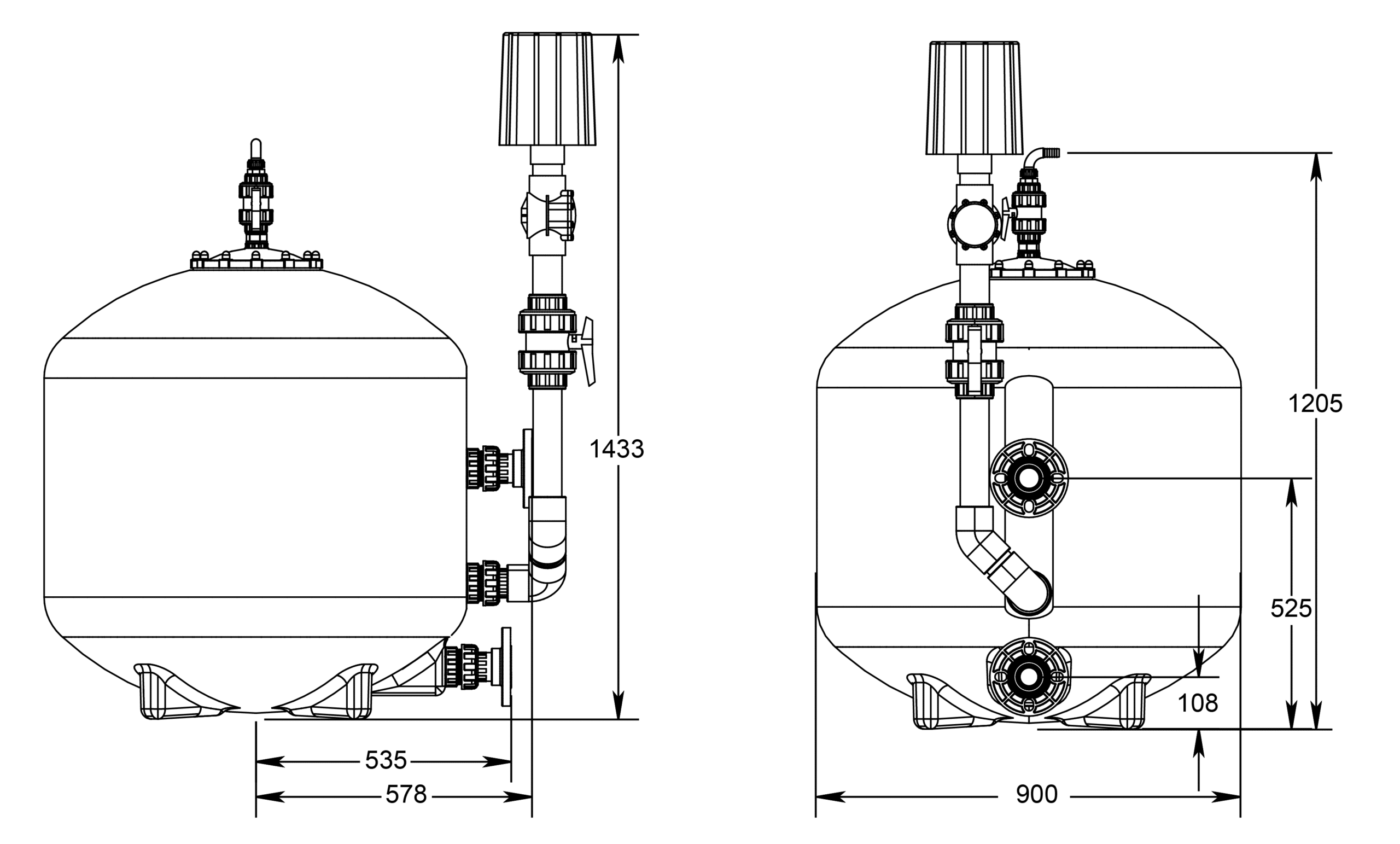

Technical Specifications (Model 900)
| Specification | Description |
|---|---|
| Diameter | 900 mm (36″) |
| Height (including lid) | Approx. 1,205 mm |
| Filtration Area | Approx. 0.64 m² |
| Media Volume | Approx. 250 L |
| Maximum Flow Rate | Up to ~32 m³/h |
| Maximum Water Temperature | 40 °C |
| Maximum Ambient Temp | 50 °C |
| Maximum Operating Pressure | 2.0 bar |
| Connection Size | 63 mm |
Ideal Applications
- Tertiary polishing of municipal or industrial effluent where fine suspended solids removal is required.
- Aquaculture systems where continuous removal of fine particulates supports healthy water quality and fish health.
- Pre-discharge or process-water loops where low maintenance and low head-loss are critical.
- Integration downstream of flocculation, DAF or lamella separation units to capture residual fines before final treatment or discharge.
Why Choose the XFM Fines Filter 900?
If you’re looking for a compact yet highly capable filtration unit that excels at removing fine particles, the Flocell XFM Fines Filter 900 is a standout. It brings together high retention capacity, minimal maintenance, and efficient operation — making it an excellent choice for applications that demand clarity, reliability and cost-efficiency. Its robust design and flexible installation options make it well suited for both retrofit and new-build projects.
The Flocell XFM Fines Filter 900 offers high-efficiency fine-solids removal with significantly reduced operational footprint. Its combination of advanced media, air-based cleaning, and solid engineering delivers excellent performance in a compact form. When clarity and stability of filtration are non-negotiable, this model is a strong performer.
