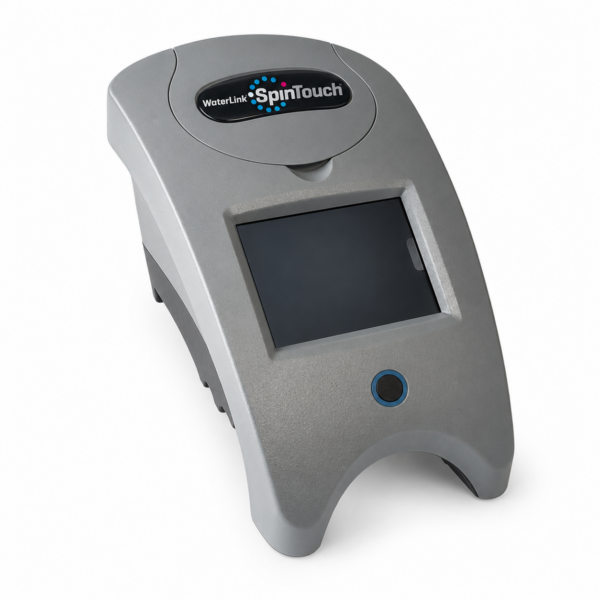

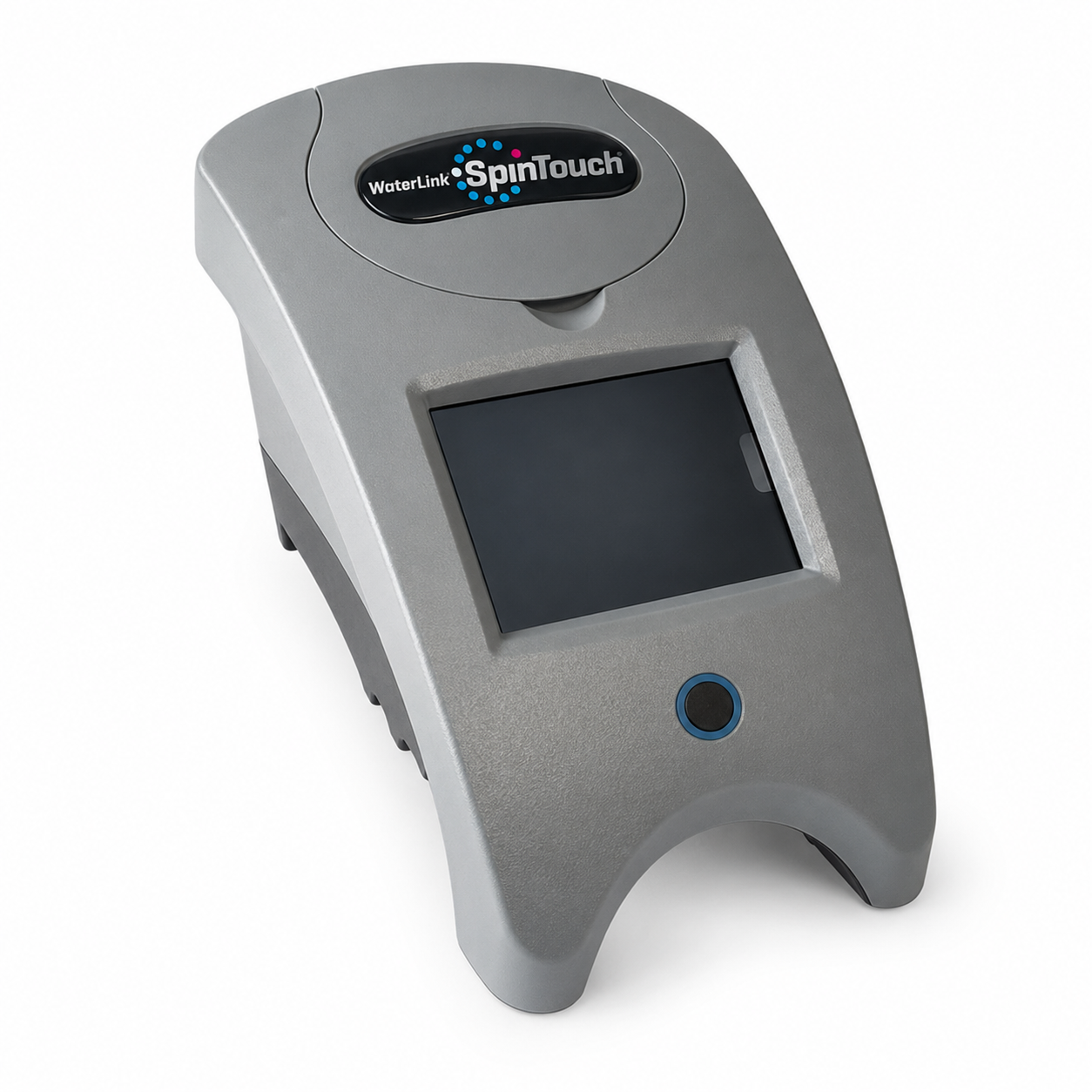

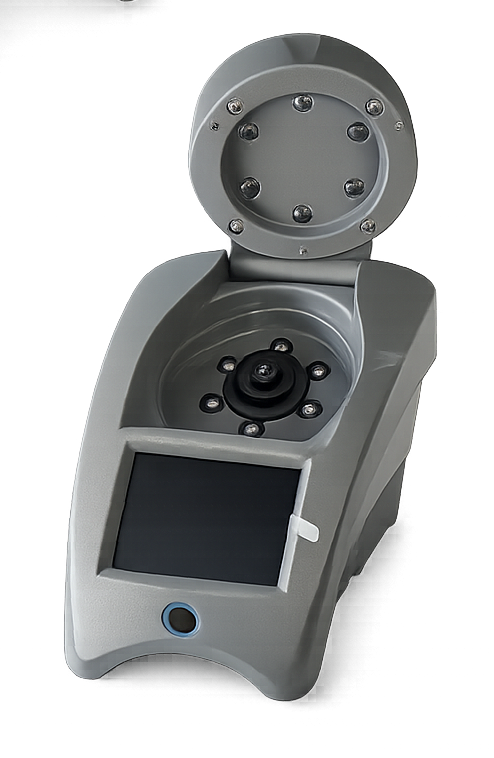

The LaMotte WaterLink® Spin Touch® 3580-AU is a professional benchtop water analysis system that delivers laboratory-grade water chemistry results in as little as 60 seconds. Developed by LaMotte Company and supplied in Australia by Pure Aquatics, the Spin Touch is trusted in retail pool testing counters, aquaculture farms, hatcheries, research laboratories and aquatic facilities nationwide.
Using LaMotte’s patented SpinDisk™ reagent disk technology, the system automates the entire testing process. Inject less than 3 mL of sample water into a SpinDisk, insert it into the instrument and press start — the analyser handles reagent mixing, reaction timing and photometric measurement automatically, displaying results on the colour touchscreen. No chemistry training required, no manual titration, and no operator-to-operator variation.
For aquaculture operators managing freshwater, saltwater, or brackish systems, the Spin Touch provides a rapid and repeatable way to monitor key water chemistry parameters that affect fish health, biofilter performance, and overall system stability.
Ideal for Aquaculture Monitoring
In aquaculture environments, maintaining stable water chemistry is critical to animal welfare and system efficiency. The Spin Touch system provides rapid diagnostics for daily water checks, enabling operators to identify imbalances before they affect stock.
Typical aquaculture applications include:
-
Recirculating Aquaculture Systems (RAS) water monitoring
-
Hatchery and nursery tank testing
-
Marine, freshwater, and brackish production systems
-
Public aquarium life support systems
-
Research and aquatic science laboratories
Because the system uses sealed reagent disks and automated photometry, it provides consistent results regardless of operator experience, making it ideal for facilities with multiple staff performing routine testing.
Simple 3-Step Testing Process
-
Fill – Inject less than 3 mL of water into the SpinDisk cartridge
-
Insert – Place the disk into the instrument
-
Tap Start – The analyser performs all testing automatically
Within 30–60 seconds, the system provides a full digital water analysis on the colour touchscreen display.
Smart Data Management
The instrument can operate as a stand-alone testing unit or connect to a Windows PC via USB for advanced data management through WaterLink Solutions PRO.
When connected, the software allows users to:
-
Store complete test histories
-
Track water quality trends over time
-
Generate printable reports
-
Produce treatment or adjustment recommendations
This makes the system particularly useful for aquaculture managers tracking system performance and maintaining compliance records.
What the SpinDisk® Tests
10-Parameter SpinDisk Series — Results in 60 Seconds
Available disk codes: 4353-H – Freshwater, 4354-H Saltwater
Tests include:
- Free Chlorine (DPD)
- Total Chlorine
- Combined Chlorine (calculated)
- Bromine
- pH
- Total Alkalinity
- Calcium Hardness
- Cyanuric Acid
- Copper
- Iron
- Salt
- Phosphate (4329 disk)
Benchtop – Kit Contents – 3580-AU
The WaterLink Spin Touch Benchtop Kit includes everything required to begin testing:
- Photometer instrument
- Instruction manual
- Quick-start instructions
- 3 × sample syringes
- Calibration check disk
- USB cord with wall adapter
- In-store display kit (counter mat, wall poster, window decal)
SpinDisk reagent cartridges are sold separately. Available disk codes: 4353-H – Freshwater, 4354-H Saltwater
Technical Specifications
Instrument Type: Centrifugal Fluidics Photometer
Wavelengths: 6-wavelength colourimeter – 390, 428, 470, 525, 568, 635 nm
Display: 3.5-inch colour capacitive touchscreen
Test Time: 30 seconds (3-parameter) / 60 seconds (10-parameter)
Sample Volume: < 3 mL
Battery: Rechargeable lithium-ion (approx. 150 tests per charge)
Connectivity: Bluetooth® and USB
Data Storage: Test dates, times, and results stored on device
Calibration: Factory set, field calibration via USB to Windows PC
Certification: NSF/ANSI/CAN 50 Level 1 Certified · CE
Pure Aquatics is an Australian supplier of the LaMotte WaterLink Spin Touch and genuine SpinDisk™ reagent disks. Every unit ships with local support from our team on (02) 6585 2421
Consumables: Genuine LaMotte SpinDisk reagent disks available from Pure Aquatics
FAQ’s:
Does the Spin Touch connect to software? Yes — results can be transferred to WaterLink® Connect software for record-keeping and dosage.
Is this suitable for aquaculture and hatcheries? Yes. Alongside pool and spa retail testing, the Spin Touch is widely used in aquaculture, hatcheries and research labs where fast, repeatable multi-parameter water chemistry is essential.
