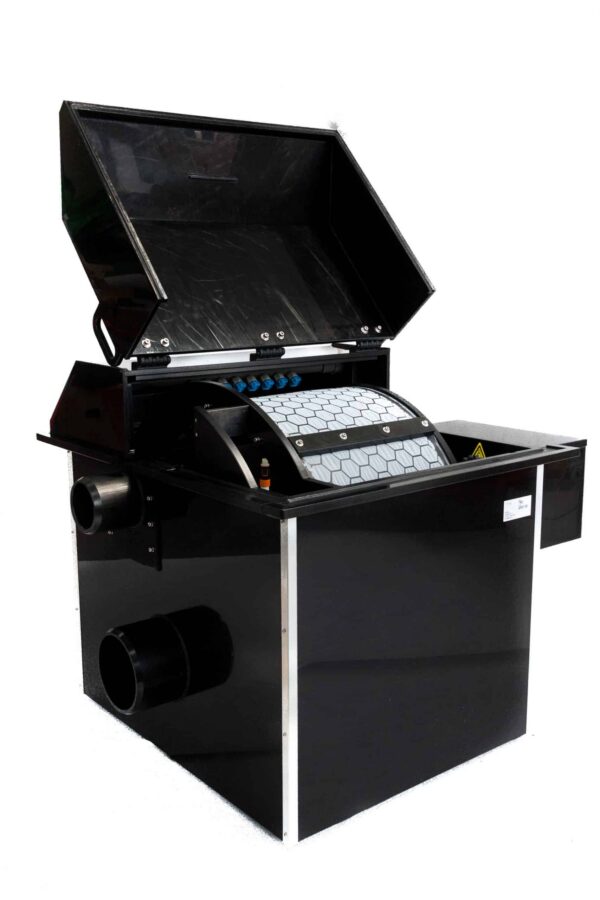

Trome TM3 Drum Micro Screen Filter – Advanced Filtration for Large-Scale Aquaculture Systems
The Trome TM3 Drum Micro Screen Filter is a high-capacity, automatic filtration system engineered for large-scale aquaculture operations. Designed to handle greater water volumes while maintaining exceptional solids removal efficiency, the TM3 provides robust and continuous filtration for demanding recirculating aquaculture systems (RAS), hatcheries, and grow-out facilities. Its durable construction and automated cleaning system ensure consistent performance with minimal operator attention, even under heavy load conditions.
Key Features & Benefits
-
Heavy-duty construction: Built from high-quality HDPE and stainless steel for superior corrosion resistance and durability in both fresh- and saltwater environments.
-
High-efficiency microscreen filtration: Equipped with a standard 60 µm mesh that effectively removes suspended solids, fine particulates, and waste, maintaining optimal water clarity and system health.
-
Large flow capacity: Designed for flow rates of approximately 20,000 – 30,000 L/h, making it suitable for commercial-scale aquaculture systems and centralized filtration setups.
-
Automatic self-cleaning operation: The rotating drum and integrated backwash system continuously remove collected solids, reducing maintenance time and ensuring uninterrupted filtration.
-
Compact footprint for its capacity: Despite its high throughput, the TM3 remains space-efficient and easy to integrate into existing system layouts.
-
Optimized for commercial aquaculture: Developed for continuous operation in RAS environments, ensuring stable water quality, reduced biofilter loading, and improved system efficiency.
Typical Applications
-
Large-scale recirculating aquaculture systems (RAS)
-
Commercial fish and shrimp farms
-
Broodstock, nursery, and grow-out facilities
-
Centralized hatchery filtration systems
-
Pre-filtration before biofiltration, UV disinfection, or ozone treatment
Performance & Technical Highlights
-
Mesh size: 60 µm standard (optional variations available)
-
Flow capacity: 20,000 – 30,000 L/h
-
Materials: HDPE body, stainless steel frame, and corrosion-resistant mechanical components
-
Operation: Fully automatic with integrated self-cleaning backwash cycle
-
Key advantages: High throughput, low maintenance, long service life, and reliable 24/7 operation
Why Choose the TM3?
The Trome TM3 Drum Micro Screen Filter is the perfect solution for aquaculture operators who demand consistent, large-scale solids removal with minimal oversight. Its efficient design reduces system downtime, labor costs, and energy consumption while maintaining superior water quality—key to achieving optimal fish growth and feed performance. Designed for longevity and simplicity, the TM3 delivers industrial-grade reliability and precision filtration for professional aquaculture systems.
Installation & Maintenance
-
Install upstream of biofilters or other treatment units for maximum solids capture efficiency.
-
Connect appropriate inlet/outlet piping and backwash discharge lines.
-
Periodically inspect the microscreen and adjust cleaning frequency as needed.
-
Follow recommended maintenance schedules for motor and seal components.
What’s Included
-
Trome TM3 Drum Micro Screen Filter unit
-
Standard 60 µm microscreen
-
Drum and drive motor assembly
-
Installation kit and fittings
-
Operation and maintenance manual
The Trome TM3 Drum Micro Screen Filter delivers powerful, automated solids removal for large aquaculture systems requiring reliable, continuous filtration. Its combination of high throughput, robust design, and easy operation makes it an ideal choice for commercial fish farms, hatcheries, and research facilities committed to maintaining clean, stable water conditions and sustainable production.
