Digiheat 2.4kW Inline Heater Titanium Element

Description

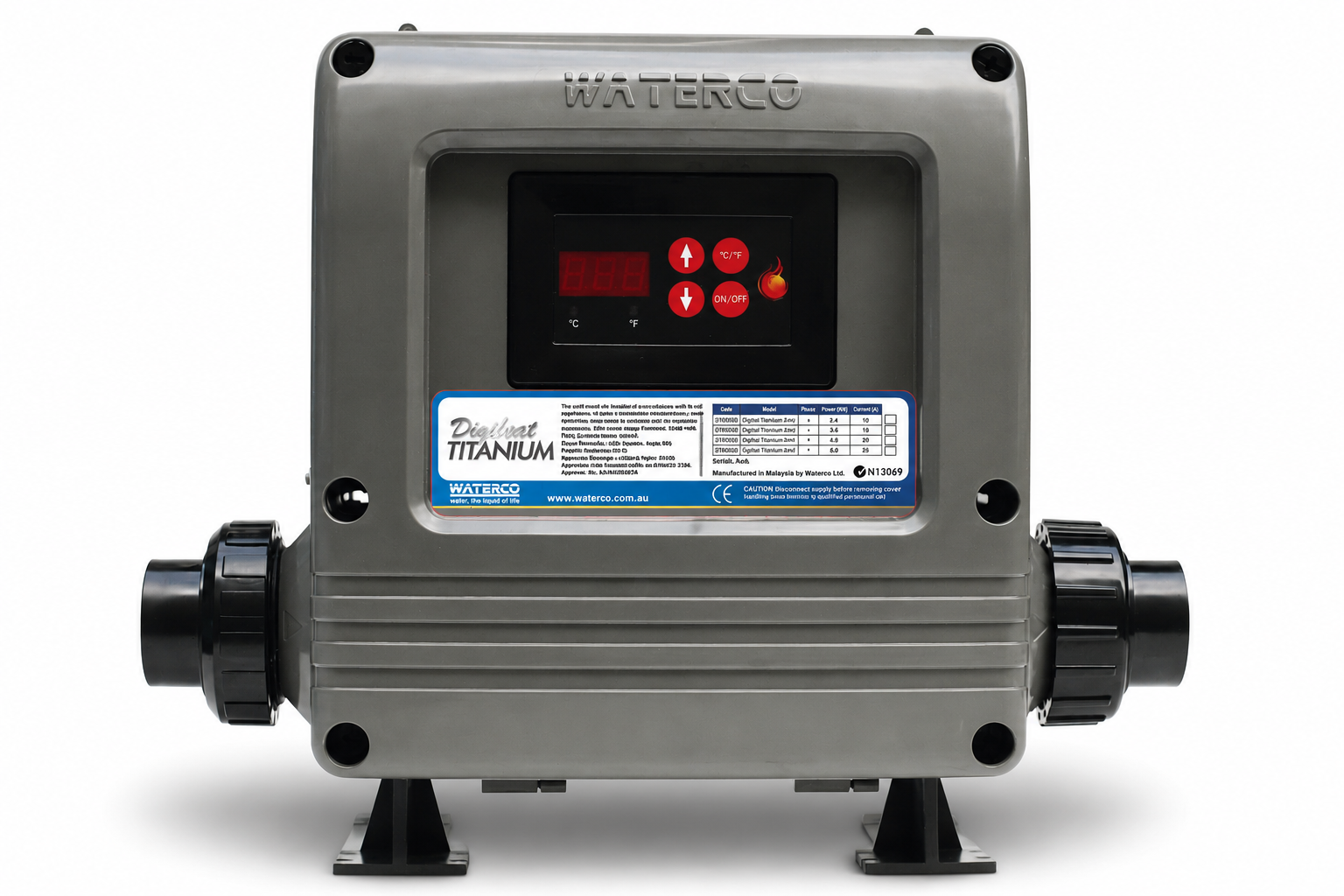

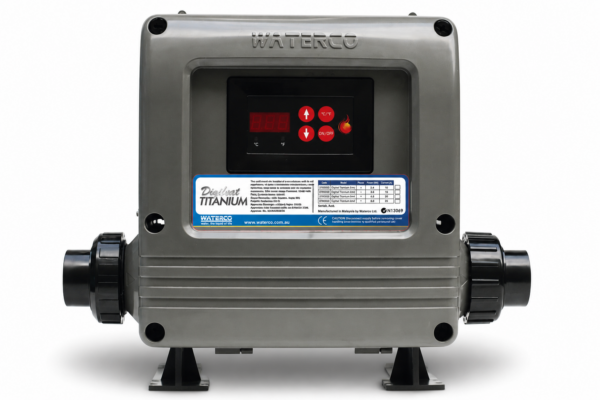

Digiheat 2.4kW Inline Heater Titanium Element

The Waterco Digiheat 2.4kW Inline Heater with titanium heating element is a reliable, high-performance electric water heater designed for demanding aquaculture, marine and saltwater applications. Built for continuous operation in harsh aquatic environments, this compact inline heater delivers efficient and dependable water temperature control for recirculating aquaculture systems (RAS), marine hatcheries, quarantine systems, lobster and crab holding tanks, abalone systems, aquariums and commercial aquatic life support systems.

For aquaculture operations, maintaining stable and accurate water temperatures is critical for animal health, feed conversion efficiency, growth rates and overall system performance. The Digiheat 2.4kW Inline Heater offers a simple and effective solution for heating saltwater and freshwater systems without the complexity of larger boiler or heat exchange systems. Its direct inline design allows water to pass straight through the heater body, eliminating the need for complicated bypass plumbing and reducing installation costs.

One of the standout features of the Digiheat range is the premium titanium coiled heating element. Titanium is highly resistant to corrosion caused by saltwater, chlorinated water, ozone, iodine, baquacil and aggressive marine environments, making this heater an excellent choice for marine aquaculture facilities and saltwater recirculating systems. Unlike standard stainless steel heating elements that can corrode over time in saline conditions, titanium offers exceptional durability and longevity, even in continuous commercial operation.

Smart Controls & Safety

The Digiheat features an easy-to-read LED display showing current water temperature and desired setpoint. In the event of an operating issue, the control panel displays diagnostic error codes for rapid troubleshooting. Inbuilt safety devices monitor water flow and provide over-temperature cutout protection, ensuring the heater shuts down safely if flow is interrupted or the water exceeds safe limits. The weatherproof cabinet is designed for outdoor installation.

Technical Specifications

Parameter	Value
Model	Digiheat 2.4kW
Heating Capacity	2.4kW
Voltage	240V single phase
Current Draw	10A
Minimum Circuit Size	15A
Connection Size	40mm
Minimum Flow Rate	100 litres/minute minimum
Dimensions (L x H x W mm)	469 x 332 x 161
Element Material	Titanium coiled element
Phase	Single Phase
Standards Compliance	EN60335.260 and AS3136/NZS6232
Warranty Residential	2 years
Warranty Commercial	1 year

Heating Performance Guide

Guide only actual performance depends on heat loss, insulation and ambient conditions.

Temperature Rise	Time to heat 1,000 litres
+1°C	31 min
+5°C	155 min

Titanium Element Corrosion Resistance

The titanium coiled heating element is impervious to:

• Ozone
• Iodine
• Baquacil
• Sea water / saltwater
• Salt and chlorinated spa/aquaculture water

Key Features

• 2.4kW inline electric water heater
• Titanium coiled heating element for superior corrosion resistance
• Suitable for marine and freshwater aquaculture systems
• LED display with smart temperature controls and self-diagnosis
• Inbuilt flow and over-temperature safety cutout
• Weatherproof cabinet for outdoor installation
• Direct inline installation — no bypass required
• Hard-wired single phase electric resistance heater
• Compact and reliable design with minimal maintenance requirements
• Commercial-grade construction for continuous operation
• Powerful heat transfer through coiled element maximising water contact
• Complies with EN60335.260 and AS3136/NZS6232

Ideal Applications

• Marine recirculating aquaculture systems (RAS)
• Saltwater aquaculture and grow-out facilities
• Marine hatcheries and larval rearing systems
• Lobster holding tanks and crab holding systems
• Abalone aquaculture
• Quarantine and broodstock systems
• Aquatic research facilities
• Public aquariums and ornamental marine aquariums
• Commercial seafood holding systems
• Swim spas and plunge pools

At Pure Aquatics, we supply high-quality aquaculture heating equipment designed specifically for Australian aquaculture conditions. Whether you are operating a marine hatchery, saltwater recirculating aquaculture system, seafood holding facility or aquatic research project, the Digiheat 2.4kW Inline Heater provides a dependable and corrosion-resistant solution for maintaining precise water temperatures.
