Description

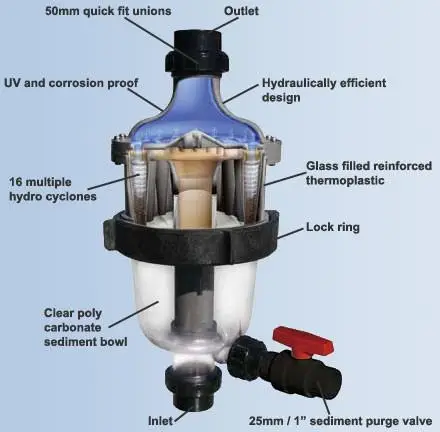

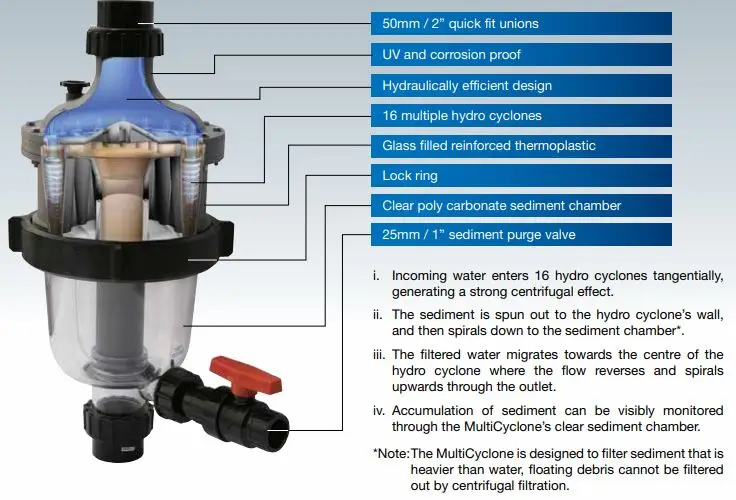

MultiCyclone is a centrifugal pre-filtration device that reduces filter maintenance and saves water. Using 16 multiple hydro cyclones, incoming water enters tangentially to generate a strong centrifugal effect — sediment is spun out to the cyclone wall and spirals down into a clear sediment chamber, while filtered water reverses direction and exits through the outlet.
With no filter media to clean or replace and no moving parts to wear out, the MultiCyclone is simple to maintain — just open the purge valve and 15 litres of water flushes out the collected sediment.
Key Benefits
- Filters incoming dirt load before it reaches your main filter
- Reduces sand filter backwash frequency to as little as once per year (saving up to 7,000L of water/year)
- Reduces cartridge filter cleaning/replacement to once per season or once per year
- No filter media to clean or replace — no moving parts to wear out
- Suitable for new and existing installations
- Also suited to cooling water, aquaculture, koi ponds, water recycling, and commercial water filtration applications
Specifications
| Spec | Detail |
|---|---|
| Connections | 50mm / 2″ quick-fit unions |
| Purge valve | 25mm / 1″ sediment purge valve |
| Construction | Glass-filled reinforced thermoplastic, UV and corrosion proof |
| Sediment chamber | Clear polycarbonate (visual monitoring) |
| Minimum flow rate | 50 lpm / 3 m³/hr / 13 gpm |
| Maximum flow rate | 500 lpm / 30 m³/hr / 132 gpm |
| Filtration efficiency | 30–40µm: 96.8% / 40–50µm: 98.6% / 50–60µm: 99% / 60–80µm+: 99.2–99.6% |
| Height | 600mm |
| Width | 294mm |
| Depth | 270mm |
| Warranty | 2 years (1 year on labour); commercial installs 1 year |
Certifications & Awards: NSF Cer
