How to Optimise MBBR Performance in Aquaculture Biofilters

How to Optimise MBBR Performance in Aquaculture and Water Treatment Systems

Moving Bed Biological Reactors (MBBRs) are an efficient and low-maintenance method of biological filtration used in aquaculture, wastewater treatment, and industrial water reuse. Optimising your MBBR performance can significantly improve nitrification rates, reduce Total Ammonia Nitrogen (TAN), and stabilise water quality.

This guide explains the main design and operational factors that affect MBBR performance, along with practical steps to help you optimise your system.



What Is an MBBR?

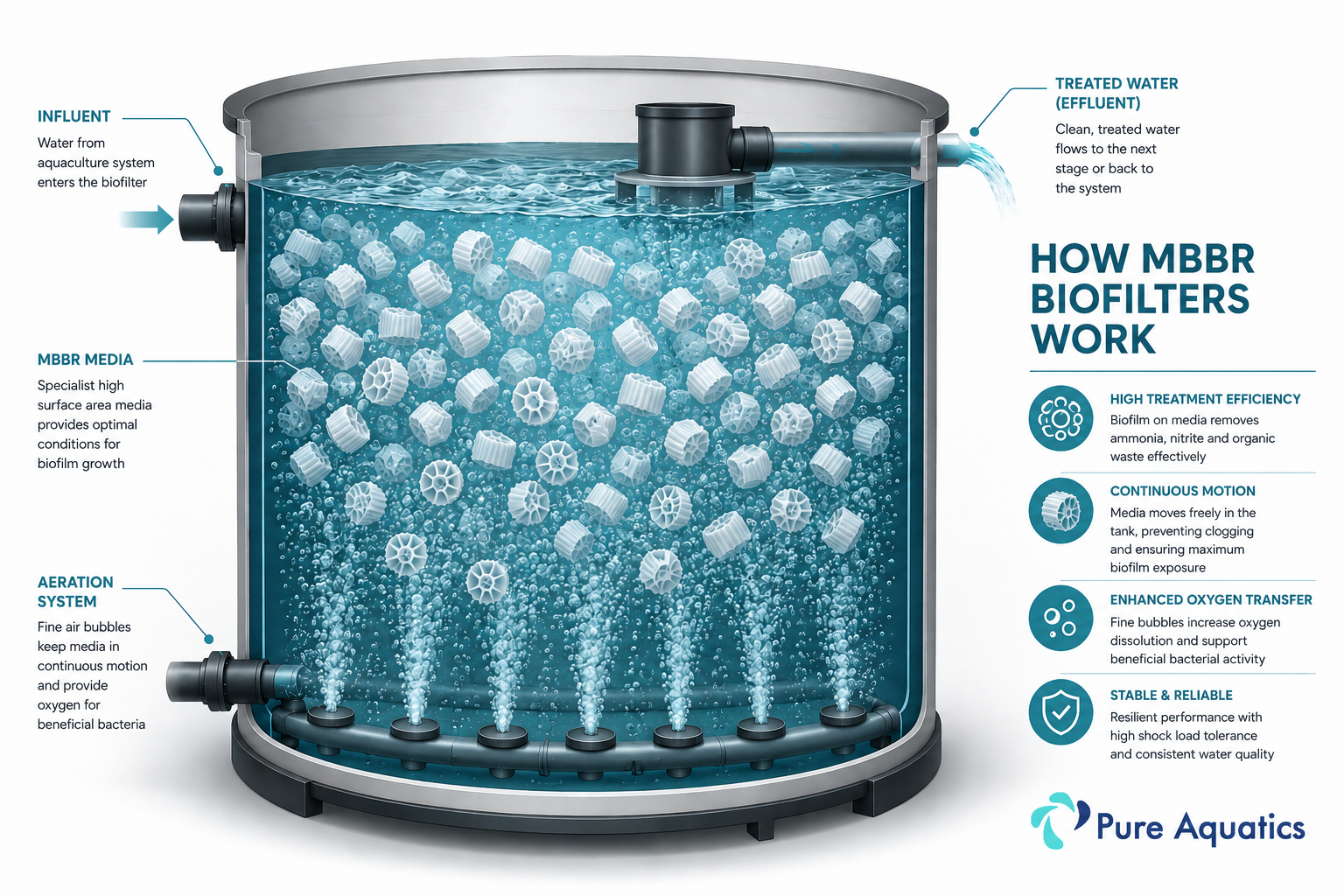

An MBBR (Moving Bed Biological Reactor) uses free-floating plastic media inside a reactor tank. The media provides surface area for biofilm—a community of nitrifying and heterotrophic bacteria that remove ammonia, nitrite, and organic waste. Aeration keeps the media suspended and oxygenated for continuous biological activity.

  • High nitrification in a compact footprint
  • Low maintenance and self-cleaning
  • Resilience to hydraulic and loading fluctuations
  • Scalable for Recirculating Aquaculture Systems (RAS) or wastewater applications



Key Factors Affecting MBBR Performance

1. Dwell Time

Dwell time (hydraulic retention time) determines how long water remains in the reactor. Longer dwell times increase contact between biofilm and ammonia but can reduce turnover if excessive.

Recommended ranges:

  • Warm water (24–30°C): 7–10 minutes
  • Cold water (10–18°C): 15–25 minutes

Adjust flow to balance TAN removal and oxygen transfer efficiency.



2. Mixing and Aeration

Effective mixing ensures even media distribution and prevents dead zones. Traditional drilled-pipe aeration can cause clogging and poor circulation, while modern diffused aeration systems provide superior oxygenation and energy efficiency.

  • Use fine bubble diffusers or grid aeration
  • Maintain 10–20% media motion per second
  • Inspect air delivery for uniform flow



3. Dissolved Oxygen (DO) Levels

Maintain adequate oxygen for nitrifiers to thrive.

Target DO ≥ 5 mg/L at all times. If levels drop, increase airflow or check diffuser performance.



4. Biological Oxygen Demand (BOD)

Excess BOD competes with nitrifiers for oxygen and surface area, reducing filter performance.

Tips:

  • Use pre-filtration to remove solids before the MBBR
  • Maintain thin biofilm layers through proper aeration
  • Consider separate carbon and nitrification stages for high BOD loads



5. Media Selection

Media choice impacts both efficiency and maintenance. Prioritise protected surface area (PSA) over total surface area, as it provides sheltered zones for biofilm growth.

  • Choose media with high PSA (e.g. Hel-X, K+)
  • Use durable, UV-resistant materials
  • Typical fill rate: 40–60% of reactor volume



6. Biological Augmentation

Inoculating with nitrifying bacteria accelerates biofilm formation and stabilisation.

  • Use cultures containing Nitrosomonas and Nitrobacter
  • Follow manufacturer dosing instructions
  • Ideal for startups or post-maintenance recovery



Practical Design Guidelines

Parameter Recommended Range Notes
Dwell Time 7–25 minutes Adjust for temperature
Dissolved Oxygen ≥5 mg/L Ensure even aeration
Media Fill Rate 40–60% Balance mixing & biofilm density
Airflow 0.4–0.6 m³/h per m³ media Adjust for load and temperature
BOD:TAN Ratio <4:1 Limit carbon competition





Common Performance Issues and Solutions

Issue Possible Cause Solution
High TAN or nitrite Low DO / poor mixing Increase aeration, inspect diffusers
Media clumping Solids build-up Improve pre-filtration and mixing
Slow startup Low bacterial density Add nitrifying inoculant
Biofilm loss Over-aeration Reduce airflow or agitation
Odours / anaerobic zones High organic load Boost DO and reduce solids





Key Takeaways

  • Maintain DO ≥5 mg/L and even aeration
  • Optimise dwell time and media fill rate for your system
  • Upgrade to diffused aeration for energy efficiency
  • Use high-PSA media and biological inoculants for stable nitrification
